Products
> Eclipse> PMVOA |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
For the first
time, polarization-preserving, high-speed attenuation is available in

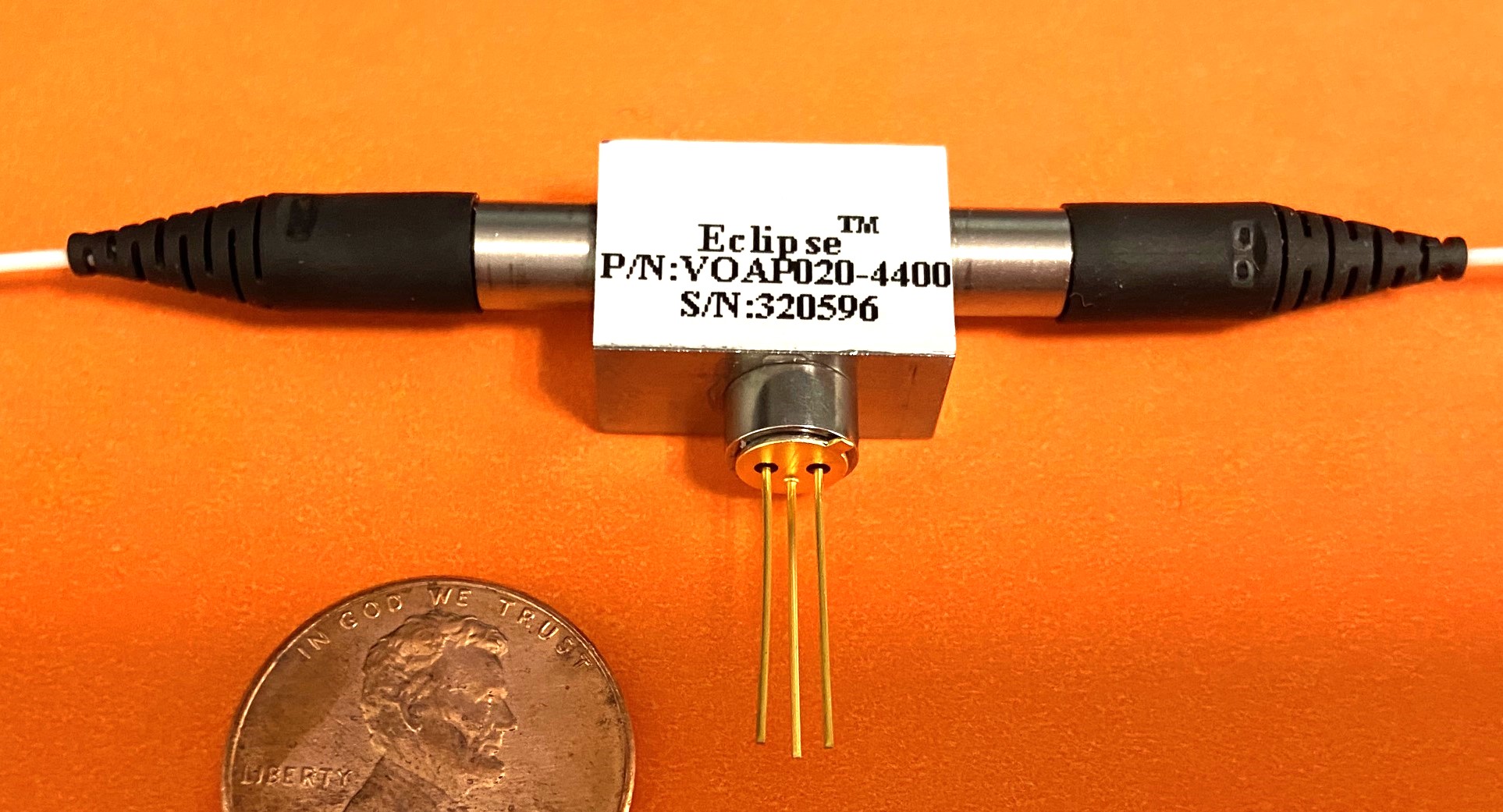

a compact package. Boston Applied Technologies' EclipseTM series
of Polarization Maintaining Variable Optical Attenuator (PM-VOA) maintains
constant polarization output regardless of wavelength and level of attenuation.
Based on the revolutionary OptoCeramicTM electro-optic technology,
the PM-VOA achieves very high-speed performance (typical transition time
of less than 30 microseconds) in a compact solid state device. For added
convenience, the PM-VOA includes an integral tap/output monitor and a
photodetector. This eliminates the need for an external polarization-maintaining
coupler and photodetector, substantially reducing cost and space requirements.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Features
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Precise, high-speed attenuation
control |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Constant
polarization output |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Excellent
optical performance |
|
|
|
|
|
![](images/bullet_small_black.jpg) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Integral
optical monitor tap |
|
|
|
|
|
![](images/bullet_small_black.jpg) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
All
solid-state construction in a compact package |
|
|
![](images/bullet_small_black.jpg) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Superb
temperature stability |
|
|
|
![](images/bullet_small_black.jpg) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Specifications |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Attributes1,2 |
Performance |
|
|
Wavelength
Range |
1530~1565nm |
|
|
Insertion
Loss |
1dB |
|
|
Dynamic
Range |
30dB |
|
|
Spectral
Flatness |
0.1dB
@ 15dB attenuation |
|
|
Extinction
Ratio |
0.5dB
maximum 0.3dB typical |
|
|
Tap Output
|
0.05µA/µW
of output power |
|
|
Input
Power |
<500mW |
|
|
Return
Loss |
>55dB |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Notes: |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Unless
otherwise specified, all measurements are at 25oC. |
|
1. |
|
|
|
|
|
|
Designed
to meets or exceeds Telcordia GR1221 and GR1209 specifications. |
|
2. |
|
|
|
|
|
|
|
|
|
|
|
Also
operate in the L-Band with 0.2dB additional insertion loss. |
|
3. |
|
|
|
|
|
|
|
|
|
|
|
For
single-wavelength applications. |
|
4. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
